CT Conditioner

Reference CTC01

Current Transformer Conditioner

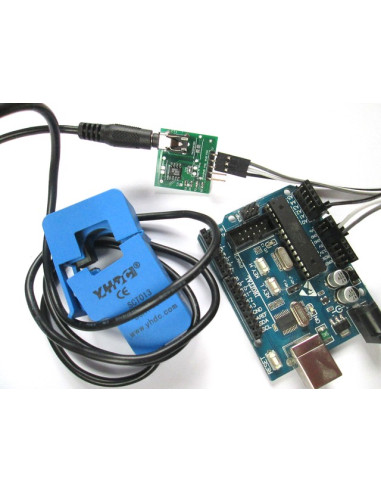

Connect most CT to an Arduino using the CT conditioner.

Documentation

£10.00

Quantity

In Stock

Description

Supports both current and voltage output CT.
3.5mm Jack connector as CT port.
Amplification easily setup by mean of a resistor.
Zero offset can be set to Vcc/2 onboard. Or use an external reference.
Uses instrument amplifier for accurate result.
Provision of a burden resistor mounting for current output CTs.
Minimum setup uses 3 wires. +5V Gnd and analog out.
Dimensions: 24x24mm
Sold with a 130Kohm gain resistor.

Product Details

Reference CTC01

In stock 39 Items
